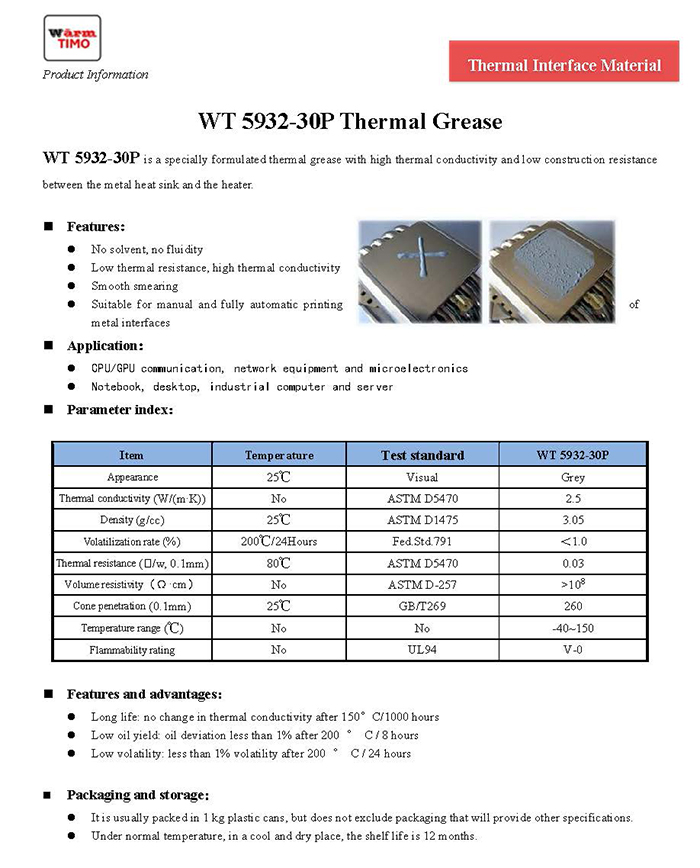

WT 5932-30P Thermal Grease


WT 5932-30P is a specially formulated thermal grease with high thermal conductivity and low construction resistance between the metal heat sink and the heater.

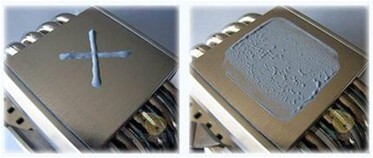

Features 30P.jpg

●  No solvent, no fluidity

●  Low thermal resistance, high thermal conductivity

●  Smooth smearing

●  Suitable for manual and fully automatic printing of metal interfaces


Application

● CPU/GPU Communication, network equipments, and microelectronics

● Notebook, desktop, industrial computer and server


Parameter Index

Item

Temperature

Test standard

WT 5932-30P

Appearance

25℃

Visual

Grey

Thermal conductivity (W/(m˙K))

No

ASTM D5470

2.5

Density (g/cc)

25℃

ASTM D1475

3.05

Volatilization   rate (%)

200℃/24Hours

Fed.Std.791

1.0

Thermal resistance (/w, 0.1mm)

80℃

ASTM D5470

0.03

Volume resistivity(Ω·cm

No

ASTM D-257

>108

Cone   penetration (0.1mm)

25℃

GB/T269

260

Temperature range (℃)

No

No

-40~150

Flammability rating

No

UL94

V-0


Features and advantages

● Long life: no change in thermal conductivity after 150°C/1000 hours

● Low oil yield: oil deviation less than 1% after 200 ° C / 8 hours

● Low volatility: less than 1% volatility after 200 ℃/24 hours


Packaging and storage

● Usually packaged in 1kg plastic cans, but it is not ruled out that other specifications of packaging may be provided.

●  Keep in ‌ambient conditions‌at ‌dry, cool, and ventilated locations, the shelf life is 12 months.

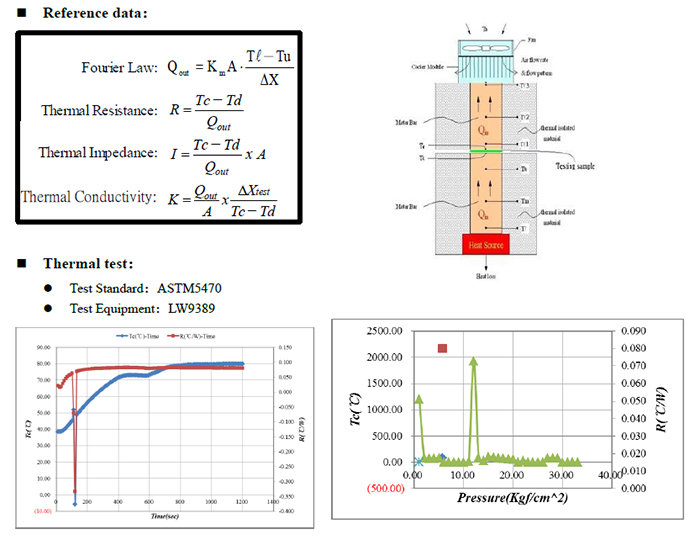

Reference data

image.png         image.png

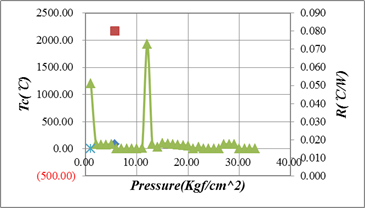

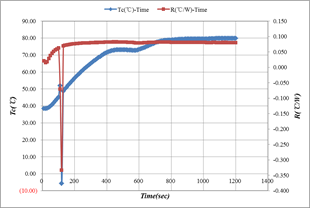

Thermal test

●  Test Standard:ASTM5470

●  Test Equipment:LW9389
