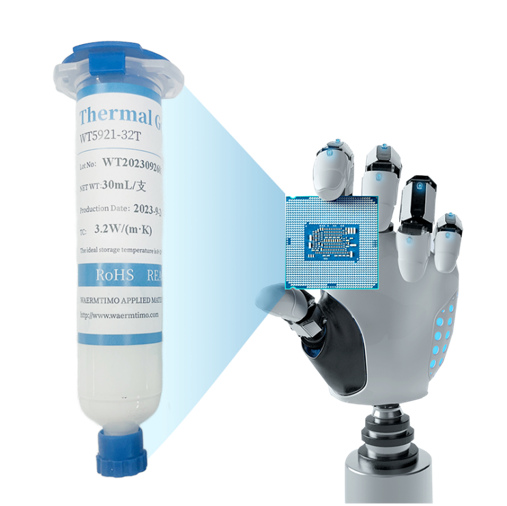

WT5921-32T Thermal Gel

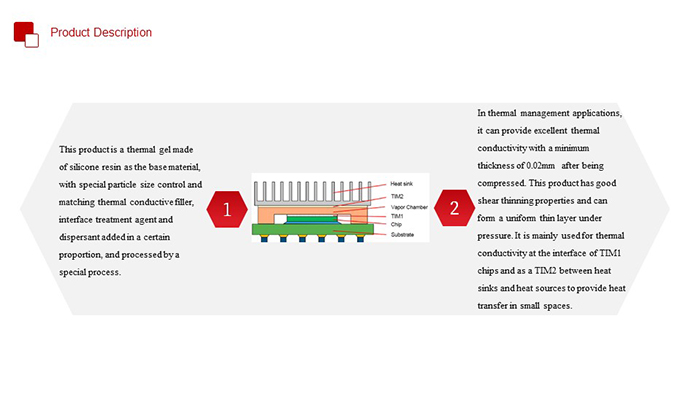

This product is a thermal gel made of silicone resin as the base material, with special particle size control and matching thermal conductive filler, interface treatment agent and dispersant added in a certain proportion, and processed by a special process.


In thermal management applications, it can provide excellent thermal conductivity with a minimum thickness of 0.02mm after being compressed. This product has good shear thinning properties and can form a uniform thin layer under pressure. It is mainly used for thermal conductivity at the interface of TIM1 chips and as a TIM2 between heat sinks and heat sources to provide heat transfer in small spaces.

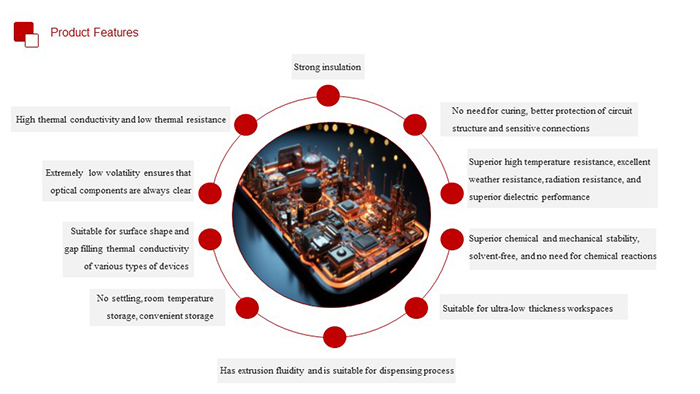

▶ Features32T.png

Strong insulation

● No need for curing, better protection of circuit structure and sensitive connections

● Superior high temperature resistance, excellent weather resistance, radiation resistance, and superior dielectric performance

● Superior chemical and mechanical stability, solvent-free, and no need for chemical reactions

● Suitable for ultra-low thickness workspaces

● Has extrusion fluidity and is suitable for dispensing process

● No settling, room temperature storage, convenient storage

Suitable for surface shape and gap filling thermal conductivity of various types of devices

● Extremely low volatility ensures that optical components are always clear

● High thermal conductivity and low thermal resistance

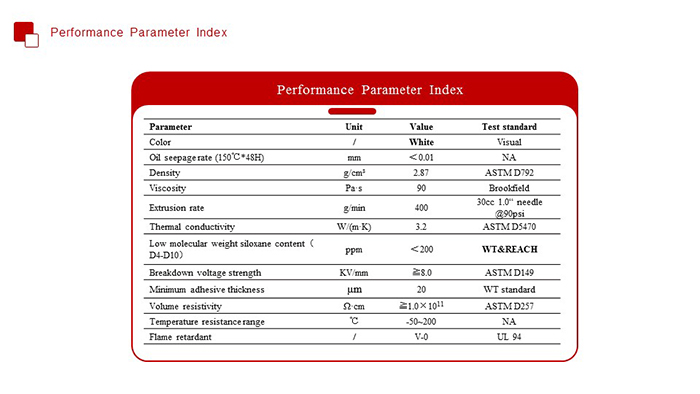

▶ Parameter Index

ParameterUnitValueTest   standard
Color/WhiteVisual
Oil seepage rate (150℃*48H)mm<0.01NA
Densityg/cm³2.87ASTM D792
ViscosityPa·s90Brookfield

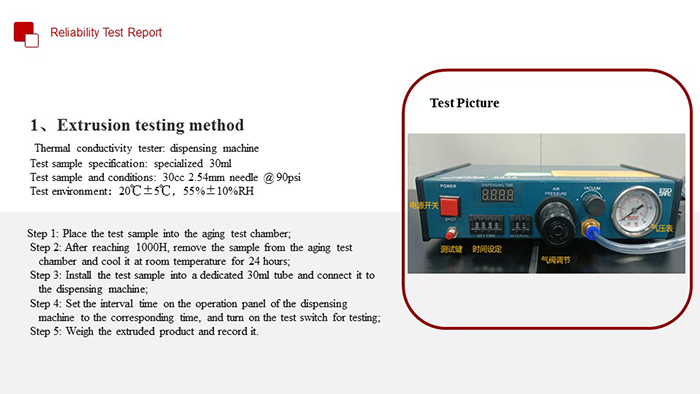

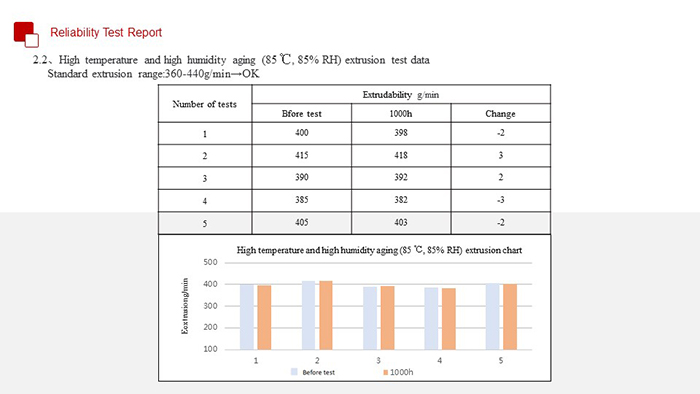

Extrusion rateg/min40030cc 1.0“ needle @90psi

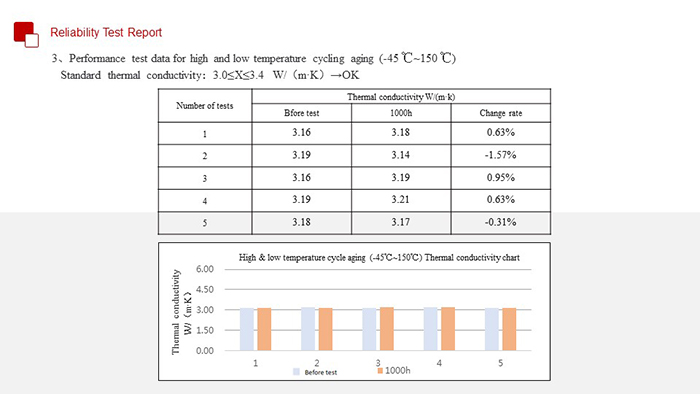

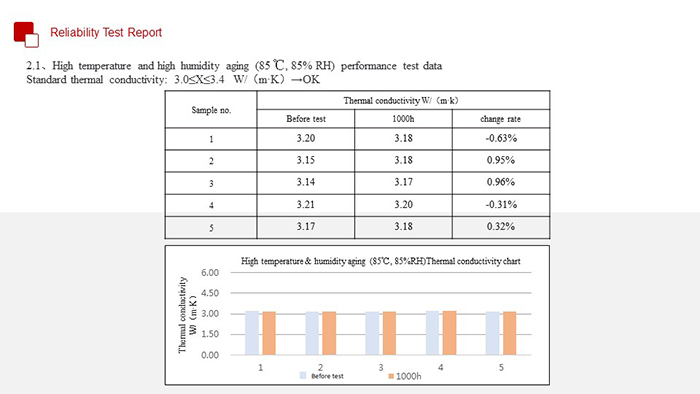

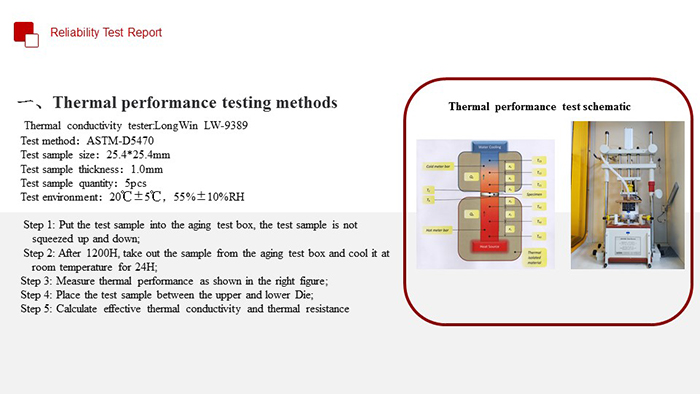

Thermal conductivityW/(m·K)3.2ASTM D5470
Low molecular weight siloxane content(D4-D10)ppm<200WT&REACH
Breakdown voltage strengthKV/mm≧8.0ASTM D149
Minimum adhesive thicknessμm20WT standard
Volume resistivityΩ·cm≧1.0×1011ASTM D257
Temperature resistance range-50~200NA
Flame retardant/V-0UL 94


▶ Typical application

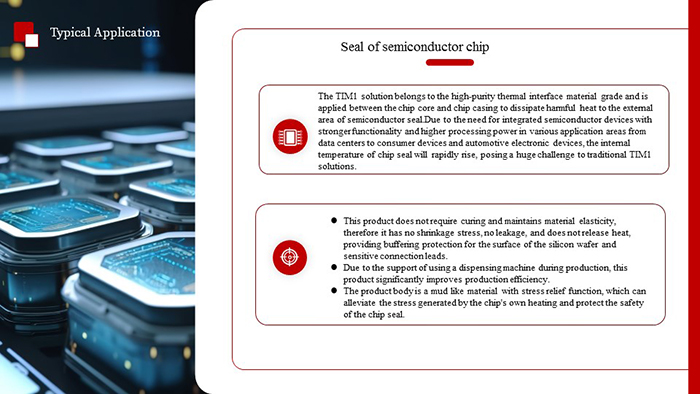

● Seal of semiconductor chip

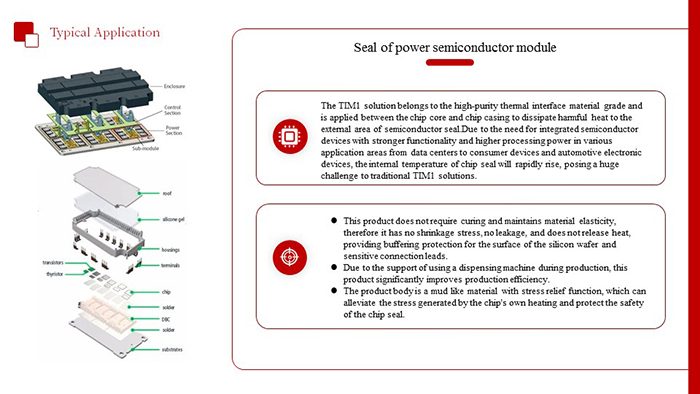

● Seal of power semiconductor module

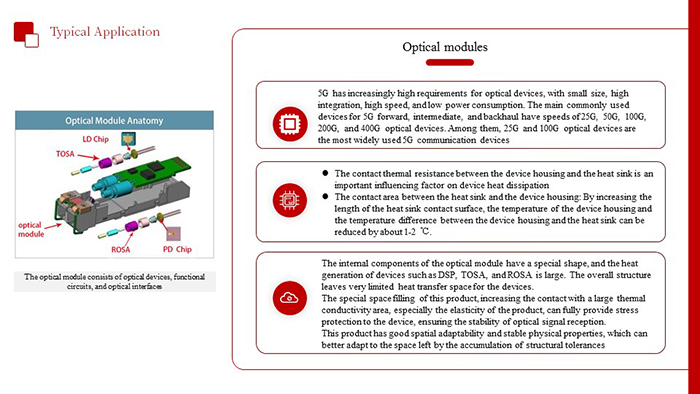

● Optical modules

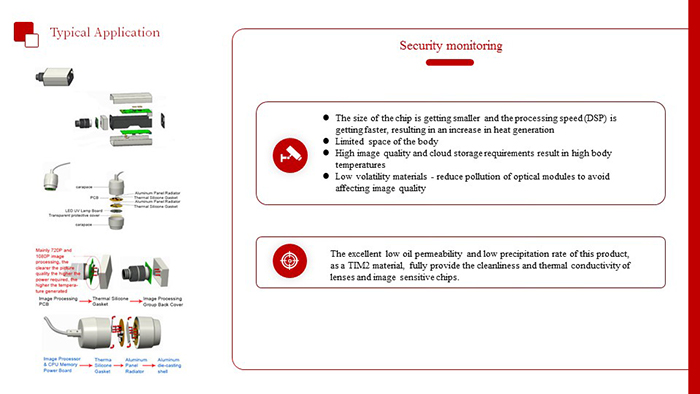

● Security monitoring

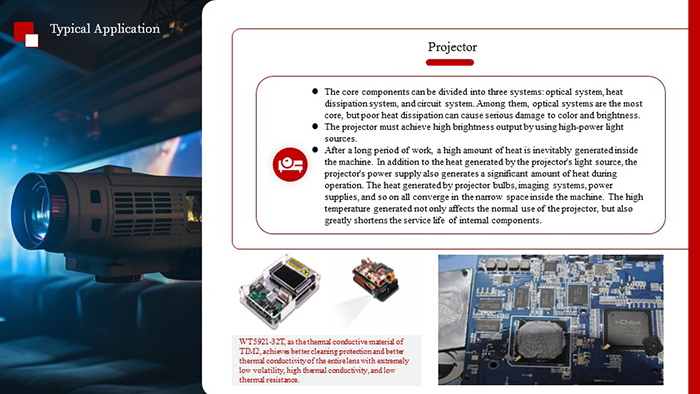

● Projector

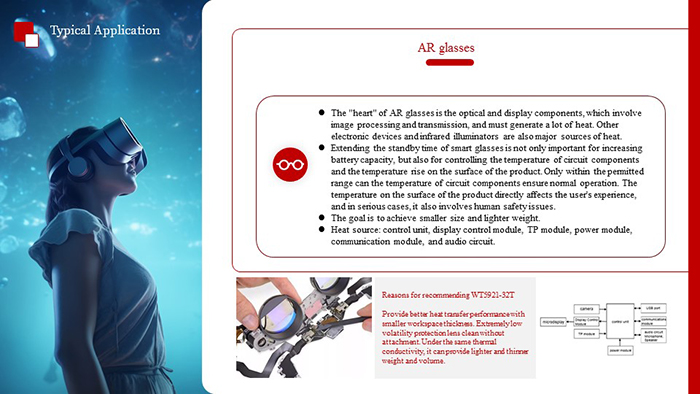

● AR glasses

●  Sport camera
